10mm x 10mm

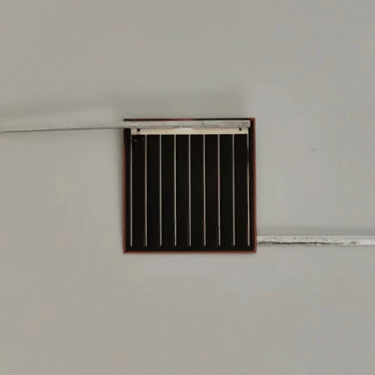

Single Junction GaAs Cell 10mm x 10mm

Efficiency 22%

Description

Specifications: 10mm*10mm
Conversion efficiency: ≥22%
Power: ≥21.9mw
Open circuit voltage: ≥1V
Working voltage: ≥0.89V
Short circuit current: ≥26mA
Working current: ≥24.6mA

Single-junction GaAs cells generate electricity by collecting outdoor direct sunlight, scattered sunlight, special 808nm band light and other laser light sources to power aerospace vehicles, GPS/sonar/border security and other data collection sensors or data transmission equipment. It can also be applied to concentrated photovoltaic power generation. GaAs cells have the advantages of high efficiency, high power density, excellent power-to-weight ratio, high voltage, flexibility, and strong plasticity. They can be widely used in space stations, satellites, drones, new energy vehicles, consumer electronics, wearable devices, and smart phones, home furnishing, wildlife protection, smart breeding, smart logistics, smart agricultural data collection, remote energy transmission and other fields.
