20mm x 50mm

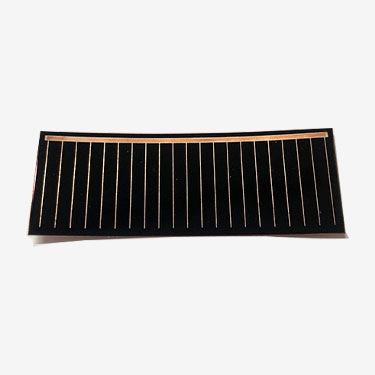

Flexible GaAs Cell 20mm x 50mm

Efficiency 25%

Description

Output power per square meter: 250W
Under 200Lux indoor light, the power per square centimeter is 18μm
Power to weight ratio: 1W/g
When the temperature is above 25℃, the power loss is less than 1% (temperature coefficient) for every 10℃ temperature increase
Operating temperature range -80°C to 100°C
The one with grid lines is the negative electrode, and the one with metal copper foil on the bottom is the positive electrode.

Read More

Optoelectronic properties

Parameters Open circuit/short circuit Maximum power
Voltage 1.09V 0.96V
Current 0.23A 0.22A
Power 0.21w

Physical characteristics of single cell

Size: bare cell 50±19.6mm, shingled cell 50*17.1mm
Thickness and weight: 110±10μm, 180mg,
Minimum bending radius: 2cm


System selection

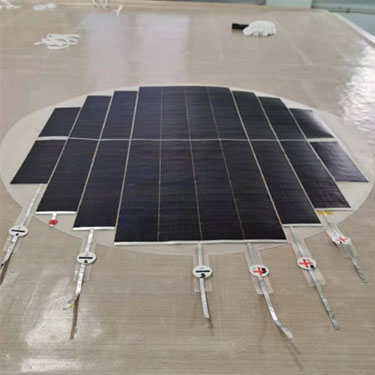

Encapsulation: Flexible polymer, glass, injection molded or custom
Power conditions: DC, maximum power point tracking or battery charge management
